Allegro Packets – Network Multimeter

Allegro Packets

Our Network Troubleshooting Devices at a Glance

Take your network troubleshooting efficiency to the next level, with Allegro Packets.
The Allegro Packets portfolio, ranges from 1G ultra-portables up to 4U datacenter appliances.
All Allegro’s feature in-depth analysis & capturing capabilities (out-of-box) for TCP, SSL, VLAN, MPLS, QoS, SMB, NTP, PTP, Profinet, OPC-UA, IEC 60870-5, SIP, VoIP, RTP, UC, ERSPAN, VXLAN, Geneve, CAPWAP and much, much more.

Allegro Packets offer fair-priced multi-purpose solutions for network troubleshooting, monitoring and 100% accurate packet capture, that are free of function-based and/or volumetric licensing.

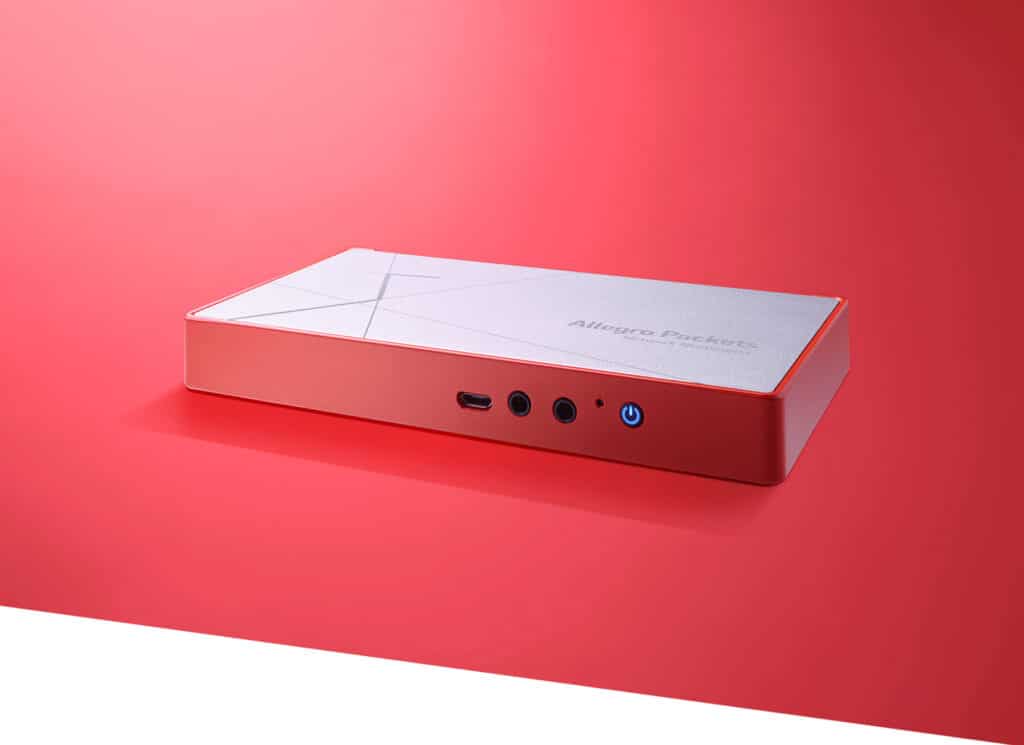

Allegro 200

The Smallest and Lightest Member of the Allegro Network Multimeter Family

  • For small offices
  • 2 x 1000Base-T monitor ports
  • 2 GBit/s max. throughput
  • 2 GB internal database memory
  • External ring buffer (USB 3.0)
  • Ultra Portable (phone size)
  • 150 mm long x 25 mm high x 81 mm deep
  • Weighs 260 g

Allegro 500

  • For offices or small data centers
  • 4 x 1000Base-T monitor ports
  • 4 GBit/s max. throughput
  • 4 – 8 GB internal database memory
  • 0.5 – 1 TB integrated ring buffer
  • Portable (1 kg)

Allegro 800

  • For large 1 G networks environments
  • 7 x 1000Base-T ports, 2x 1G SFP
  • 4 GBit/s max. throughput
  • 16 – 128 GB internal database memory
  • Up to 4 TB integrated ring buffer
  • Portable / 1U (2 – 4 kg)

Allegro 1000 / 1200

  • For office buildings or data centers
  • 3 x 1000Base-T monitor ports, 2 x 10GBase-T monitor ports, 2 x SFP+ monitor ports, 1 extension slot
  • 20 GBit/s max. throughput
  • 16 – 512 GB internal database memory
  • Up to 16 TB integrated ring buffer
  • Portable / 1U (2 – 4 kg)

Allegro 3000 / 3200

  • For office buildings or data centers
  • 3 x 1000Base-T monitor ports, 2 x 10GBase-T monitor ports, 2 x SFP+ monitor ports, 1 extension slot
  • 40 GBit/s max. throughput
  • 64 – 512 GB internal database memory
  • Up to 16 TB integrated ring buffer
  • Portable / 1U (2 – 4 kg)

Allegro 1300 / 3300 / 5300

  • For Enterprise Core Networks, Data Centers and ISP Networks
  • 3 extension slots (1 – 200 GBit/s Cu or fiber)
  • 150 GBit/s max. throughput
  • 64 GB – 4 TB internal database memory
  • Up to 25.6 TB integrated ring buffer
  • Weighs 20 – 30 kg

Allegro 1400 / 3400 / 5400

  • For Enterprise Core Networks, Data Centers and ISP Networks
  • 3 extension slots (1 – 200 GBit/s Cu or fiber)
  • 150 GBit/s max. throughput
  • 64 GB – 4 TB internal database memory
  • Up to 25.6 TB integrated ring buffer
  • Weighs 20 – 30 kg

Allegro 1500 / 3500 / 5500

  • For Enterprise Core Networks, Data Centers, ISP Networks
  • 7 extension slots (1 – 200 GBit/s Cu or fiber)
  • 150 GBit/s max. throughput
  • 64 GB – 4 TB integrated database memory
  • Up to 576 TB integrated ring buffer
  • 4U (40 – 80 kg)

Allegro JBOD

  • Just a Bunch of Disks
  • Hard drive extension for Allegro Network Multimeter
  • Usable on all units from the Allegro 1000
  • Expandable by up to 704 TB HDD
  • Parallel ring buffer support
  • 2U or 4U

Virtual Edition

  • For cloud applications
  • 1 x virtual mirror port
  • Unlimited database storage
  • Unlimited ring buffer
  • Virtual
